NEW GENERATION TRUCK

THE MAN eTRUCK GENERATION IS HERE.

With the smartest and most environmentally friendly vehicles it has ever built, MAN is simplifying your path to electrification. Besides an emission-free driveline, the new MAN eTruck generation offers excellent handling with simple operation. In addition, MAN gives you a future-proof and intelligently networked eMobility ecosystem that provides you with the best possible support in your daily work through digital solutions.

BENEFITS OF A MAN ELECTRIC TRUCK.

Ideal application fit
The MAN eTruck offers the shortest wheelbases for semitrailer tractors at 3,750 mm – with a battery capacity of up to 480 kWh and a high fifth-wheel coupling load. This means you can combine your eTruck with ISO or special trailers without exceeding a train length of 16.50 m. We also offer chassis with a wheelbase of 3,750 mm to 5,950 mm – and PTO’s are also available. The compact cabin of the MAN eTGL features just one step, allowing drivers to climb and out safely during busy times. At 4,500 mm, its wheelbase is designed for optimum manoeuvrability and good weight distribution.

Ultra semitrailer tractor for large-volume transport
Low design, high efficiency: With a minimal height of 953 mm, the MAN ultra semitrailer tractor is ideal for semitrailers with an interior height of 3,000 mm and a volume of up to 100 m3. For example, it is perfect for just-in-time/just-in-sequence deliveries in the automotive sector, where maximum use of space is crucial.

Flexible modular battery system
Bespoke battery configuration: Thanks to our intelligent battery modular kit, you can select three to seven battery packs depending on your usage specifications (four to six for semitrailer tractors). Whether you want more payload/fifth-wheel coupling load with lower acquisition
costs or a higher range, you are in control. Body manufacturers have also been part of the development process from the start. As a result, aspects such as gaps in the frame for hydraulic supports for front crane applications were considered from an early stage. The
MAN eTGL comes with two battery packs as standard.

All-round carefree package
We make your introduction to eMobility as easy, plannable and successful as possible by providing you with comprehensive help in the form of our 360° eMobility consulting. In addition, the new MAN eTGX and eTGS models come with a smart digital package included for five years as standard. The flexible MAN eMobility service products also offer you vital planning security, including a 3-year warranty for the driveline, service contracts plus tyre service or individual purchase warranties.

Commercial vehicle specific batteries – made in Germany
MAN recognises the importance of battery development as a key technology for eMobility and has created cellular chemistry specifically optimised for commercial vehicle applications. And battery production remains in-house too with the batteries being produced at the MAN location in Nuremberg.

Fast charging made easy
Instantly charge your MAN eTruck: The maximum 375 kW charging capacity of the combined charging system (CCS) makes charging time incredibly short. And the megawatt charging system (MCS) is even faster with a capacity of up to 750 kW. Four possible charging positions for the eTGX and eTGS also make handling easier.

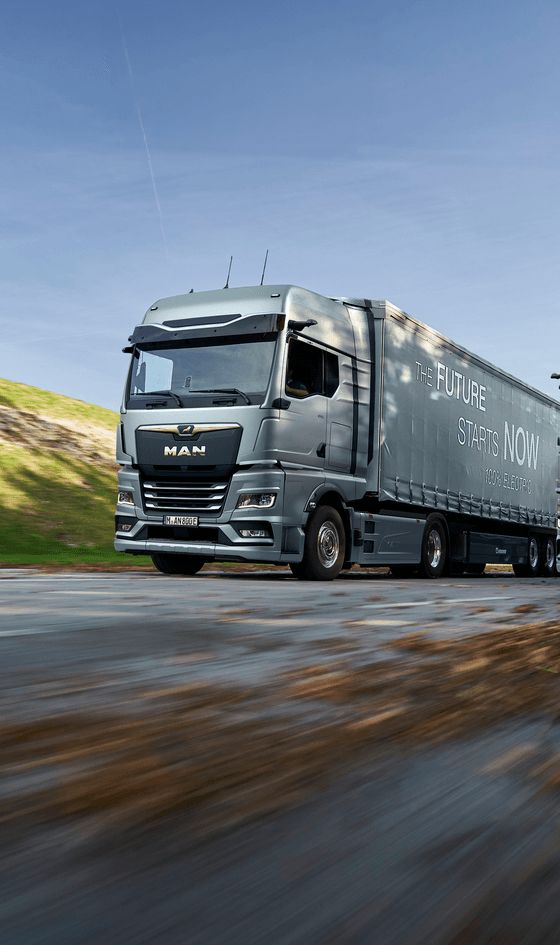

THE MAN eTGX.

ELECTRIFYING LONG-HAUL TRANSPORT.

The new MAN eTGX competes with conventional semi-trailer tractors when it comes to long haul. Regardless of whether it is a semi-trailer tractor or a chassis variant with body, the new Megawatt Charging System gives the electric truck a charging capacity of up to 750 kW making it ideal for covering long distances. And after work, the driver can relax in the comfortable rest area of the cab. The MAN eTGX is also environmentally friendly and quiet, which makes life easier for drivers and residents.

HIGHLIGHTS OF THE MAN eTGX

A variety of cabs (GX, GM, GN) with a comfortable rest area
Daily ranges of around 570 km* for semi-trailer tractors
Choice between 3 and 7 battery packs
MAN digital package eMobility included

* Please refer to the disclaimer on the next page .

The eTruck for long haulage.

TECHNICAL SPECIFICATIONS OF THE MAN eTGX

	4x2 Semi-trailer Tractor	4x2 Chassis	6x2 Chassis
Battery packs	4 – 6	3 – 6	3 – 7
Battery capacity	320 – 480 kWh	240 – 480 kWh	240 – 560 kWh
Gross vehicle weight / gross train weight	- / Up to 50 t	Up to 20 / 50 t	Up to 28 / 50 t
Range without Intermediate charging	up to 570 km*	up to 820 km*	up to 830 km*

*Disclaimer
All range and consumption figures were determined internally, represent a rough estimate, and may differ from the values determined in accordance with EU regulations. The table shows the maximum ranges, a so-called "up to" value, which can still be achieved in the best case scenario. It should be noted that, depending on the specific operating conditions and the body solution, significant deviations from the ranges and consumption figures given below are possible. The exact range and consumption values for the customer must be calculated individually, as before. The exact range of the eTruck varies depending on the specific operating conditions. Under good operating conditions, the following simple ranges are possible without intermediate charging.

4x2 standard semi-trailer truck with 6 batteries: up to 570 km
4x2 chassis box truck with 6 batteries: up to 820 km
6x2 chassis swap body with 7 batteries: up to 830 km without trailer / 600 km with trailer

THE MAN eTGS.

The eTruck for every challenge.

STRONG, VERSATILE, QUIET.

Be it in regional distribution transport, for robust special applications or as an emergency vehicle for heavy loads: the new MAN eTGS is ready to extend its versatility according to your daily challenges. It can be used for a wide range of applications: from a refrigerated box to a refuse collector, as a semi-trailer tractor or chassis. Thanks to the smooth power delivery, the ample torque from a standstill and the precise handling, the MAN eTGS offers an exceptional driving experience. And with its usable battery capacity of up to 560 kWh, it easily covers most industry-specific range requirements, all while remaining climate-conscious and quiet. This makes concerns about range a thing of the past.

HIGHLIGHTS OF THE MAN eTGS

Flexible pre-fitting for body mounting ex works
MAN digital package eMobility included
Comfortable driving experience and precise handling

TECHNICAL SPECIFICATIONS OF THE MAN eTGS

	4x2 Semi-trailer Tractor	4x2 Chassis	6x2 Chassis
Battery packs	4 – 6	3 – 6	3 – 7
Battery capacity	320 – 480 kWh	240 – 480 kWh	240 – 560 kWh
Gross vehicle weight / gross train weight	- / Up to 50 t	Up to 20 / 50 t	Up to 28 / 50 t
Range without Intermediate charging	Up to 570 km*	Up to 820 km*	Up to 830 km*

*Disclaimer
All range and consumption figures were determined internally, represent a rough estimate, and may differ from the values determined in accordance with EU regulations. The table shows the maximum ranges, a so-called "up to" value, which can still be achieved in the best case scenario. It should be noted that, depending on the specific operating conditions and the body solution, significant deviations from the ranges and consumption figures given below are possible. The exact range and consumption values for the customer must be calculated individually,
as before. The exact range of the eTruck varies depending on the specific operating conditions. Under good operating conditions, the following simple ranges are possible without intermediate charging.

4x2 standard semi-trailer truck with 6 batteries: up to 570 km
4x2 chassis box truck with 6 batteries: up to 820 km
6x2 chassis swap body with 7 batteries: up to 830 km without trailer / 600 km with trailer

THE NEW MAN eTGL.

The eTruck for urban distribution transport.

POWERFUL. AGILE. EMISSION-FREE.

With an all-electric drive, high manoeuvrability and innovative fast charging, the 12 tonne
new MAN eTGL redefines standards. The new eTruck impresses with its stable driving characteristics at high load centres thanks to its short wheelbase. Meanwhile a sophisticated cooling and heating system ensures efficient use of the battery capacity, which is available with two battery packs (160 kWh). Innovative fast-charging technology recharges the two batteries from ten to 80 percent in around 35 minutes. The manoeuvrable eTruck is designed for use with standard box and refrigerated bodies of various sizes and provides relief to drivers and residents with its low-noise. The eTGL with a refrigerated body is suited particularly well for emission-free food logistics such as inner-city catering supply. The industry-standard high-voltage interface also enables auxiliary consumers to be connected to the vehicle’s high-voltage network. Any necessary cooling units can be mounted either underneath the refrigerated body on the frame or conventionally at the front above the cab. The option of mounting below the refrigeration unit ensures that battery-electric commercial vehicles make the best possible
use of the permissible gross vehicle weight while complying with the maximum permissible
axle loads.

HIGHLIGHTS OF THE MAN eTGL

Flexible pre-fitting for body mounting ex works
MAN digital package eMobility included
Comfortable driving experience and precise handling

* Exact range varies depending on product configuration, environmental and operating
conditions. Range figures have been determined internally and may differ from the values
determined in accordance with the EU regulation.

TECHNICAL SPECIFICATIONS OF THE MAN eTGL

	4x2 Chassis
Range	Up to 310 km
Battery packs	2
Battery capacity	Up to 160 kWh
Gross vehicle weight/combination weight	11.99 t

VERSATILE SOLUTIONS FOR YOUR SUCCESS.

The new MAN eTrucks serve as the ideal foundation for all focus applications, offering a high payload and long range.
